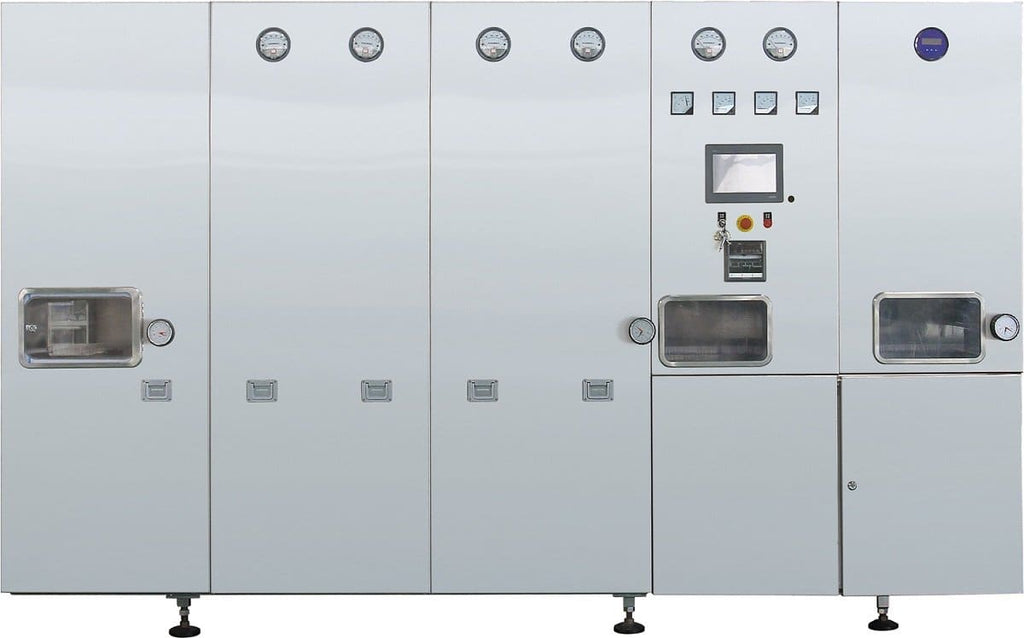

Ampoule Hot Air Circulation Sterilizing Tunnel
Main application
Hot air circulation sterilization tunnel is mainly suitable for drying ,sterilizing and removing heat source of ampoule bottle in pharmaceutical enterprises.It can also be used for drying,sterilizing and removing heat sources of vials such as vials and oral liquid bottles.
Characterstics
This machine is a tunnel structure,and the whole tunnel is divided into three parts: preheating zone,high temperature sterilization zone and cooling zone.The use of hot air laminar flow principle and high temperature sterilization process of the container drying,sterilization,heat source,the use of negative pressure sealing structure,coupled with the unique hot air diversion and other core technologies,thermal distribution,is the most popular in today’s world of the drying and sterilization machine.
Technical parameters
Product model
HSDH600/3600
HSDH600/4250
Suitable sizes(ml)
1-20ml (ampoule)
Output(pcs/h)
18000-40000
21000-45000
Mesh belt width(mm)
600
Temperature(°C)
280-350°C (Adjustable)
Breakage rate(%)
?0.05%
Power supply
380V 50Hz
Power capacity
60
71
Total weight(kg)
4500
4800
Overall dimensions(mm)
3600x1750x2245
4250x1750x2245
