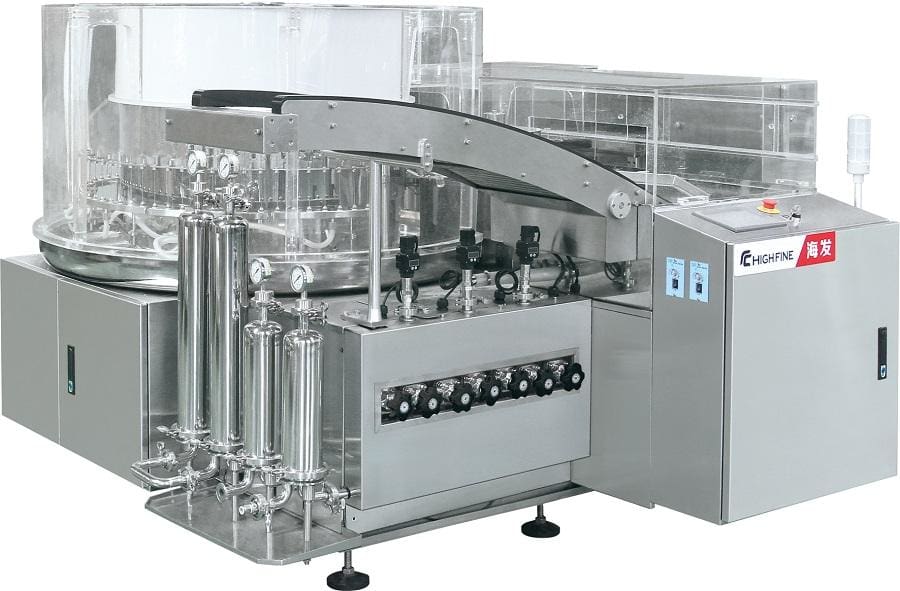

Ampoule Vertical Ultrasonic Washing Machine
Main application
Vertical ultrasonic washing machine is mainly applicable to the cleaning of ampoule bottles in pharmaceutical enterprises,and can also be used for the cleaning of vials,oral liquid bottles and other containers.
Characterstics
This machine is a vertical drum structure, by mechanical hand,overturning and needles reciprocating tracking mode,by using rough ultrasonic washing and recycling water, WFI and clean compressed air alternating jet cleaning method,finishing washing of internal 3times water washing,3times CA washing,and external 1time water washing and 1time CA washing,In the whole cleaning process.each spray needle is fixed corresponding to a cleaning process,each spray needle is fixed corresponding to a cleaning medium,without cross contamination,and meets the requirements of aseptic production. Cleaning,clarity and visible substances can be tested with good results;It is the most popular cleaning machine in the cleaning machine in the world today.
Technical parameters
Product model
HQCL 60A
HQCL 80A
HQCL 100A
HQCL 120A
Suitable sizes(ml)
1-20ml (ampoule)
Output (pcs/h)
8000-18000
11000-24000
12000-30000
18000-38000
Breakage rate
?0.1%
WFI consumption
0.4-0.6m³/h?0.3-0.5MPa
0.6-0.8m³/h?0.3-0.5MPa
0.8-1.0m³/h?0.3-0.5MPa
1-1.2m³/h?0.3-0.5MPa
CA consumption
35-40m³/h?0.4-0.6MPa
45-50m³/h?0.4-0.6MPa
55-60m³/h?0.4-0.6MPa
65-70m³/h?0.4-0.6MPa
Power supply
380V 50Hz
Power capacity
13
Total weight
2200
2300
2400
2500
Overall dimensions
2200x2200x1450
