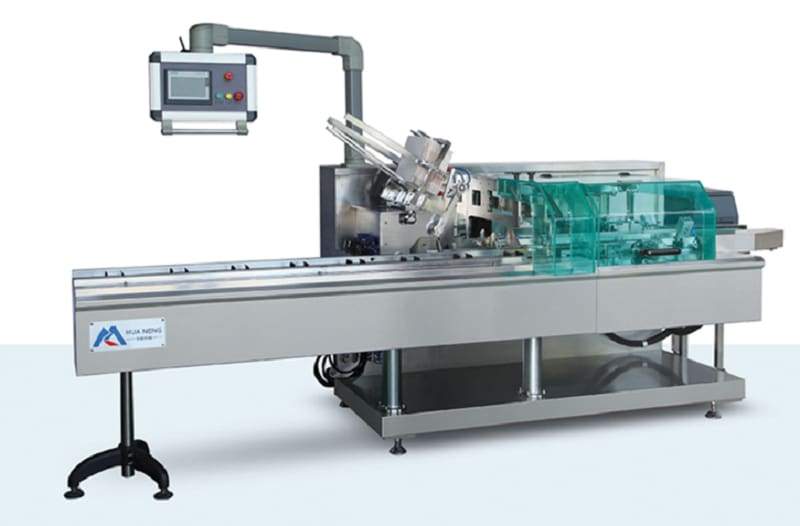

Dzh-120c Series Automatic Cartoning Machine for Big Size Carton
Introduction
The machine is one of our new products designed for auto-cartoning for medicine,foodstuff,cosmetics,consumer goods,etc.With accessories customizable for especial needs.(customized sprayer for application of melt adhesive,eg)
Application:
1.International famous brand of electrical component such as PLC touch screen,frequency inverters,etc.
2.Adopts human-machine operation system.
3.Automatically stop when machine is overload.
4.Automatically reject lacking of package product and leaflet.
5.Automatically display trouble,Alarm and count finished products .
6.Stable performance,operation is easy.
Technical parameter
|
Encasing speed |
30-80(boxes/min) |
|
|
Box |
Quality requirement |
300-350g/? Base on carton size |
|
Dimension range(L*W*H) |
(80-240)x(80-200)x(15-60)mm |
|
|
Compressed air |
Working pressure |
?0.6Mpa |
|
Air consumption |
120-160L/min |
|
|
Power supply |
380V 50Hz |
|
|
Motor power |
1.5kw |
|
|
Machine dimension(L*W*H) |
3400x1200x1750mm |
|
|
Machine weight |
About 1200kg |
|
