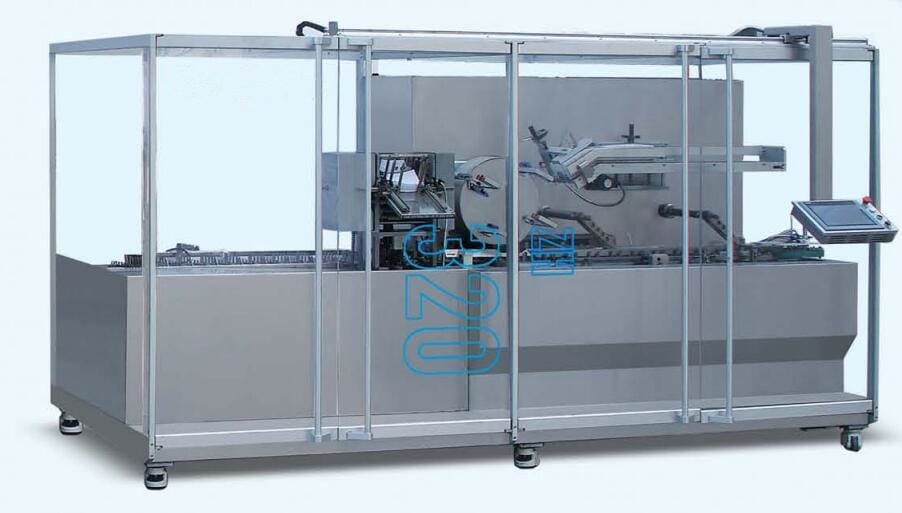

Zh-320/450 Multifunctional Automatic Cartoner

Main Function:

Automatic folding(1-4 folding) and conveying of manual leaflet,automatic material categorizing and feeding; automatic paper carton apreading; automatic manual leaflet and material carton packaging,synchronous(3-row)batch number printing,automatic paper carton sealing,automatic waste-products eliminating. It can be used for AL/PVC blister plates,injection tray,bottles,ointment product’s automatic encasing.

Performance and Characteristics:

1.Continuous mechanical feeding materials and carton packing,and working of each functional part is in harmony,stable and reliable.

2.When materials do not reach correct position,the pusher has an alam and halt facility for that,in order to ensure good quality of carton packaging and safety in operation effectively.

3.Constantly moving carton-opening and pulling carton-opening mechanism are more stable and reliable.

4.Servo material departing and feeding mechanism is stable and eliable.

5.Halt facility for air pressure and vacuum protection,when safety-cover is opened,the halt facility will be checked automatically for operating safety of the machine.

6.It is easy,convenient and quick to change and adjust product size by hand wheel.

7.Variable frequency speed regulation,automatic PLC control system with touch screen, easy to operate,the system run stably.

8.Overload protection for principal driving,indication of failure diagnosis,automatic fault shutdown.

Technical parameters
