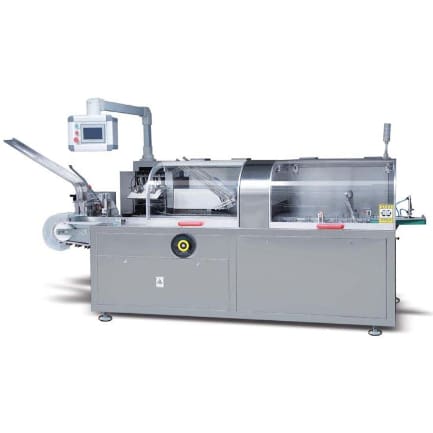

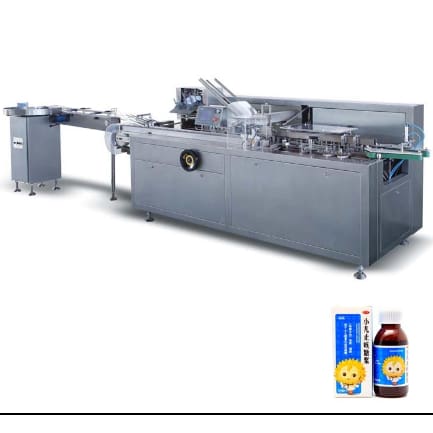

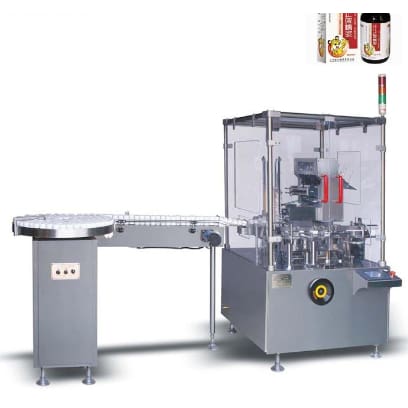

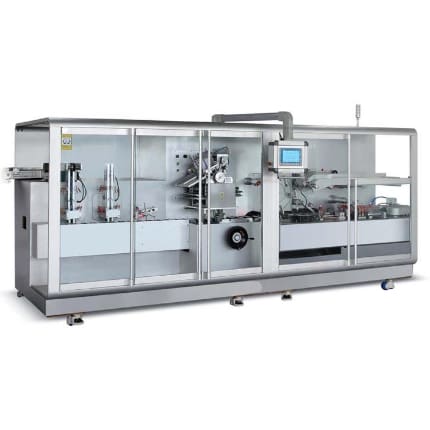

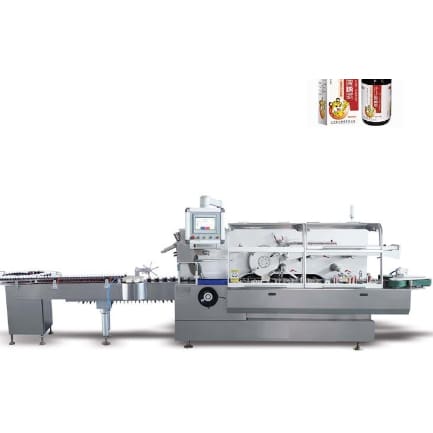

Automatic Carton Box Packaging Machine
This new model high-speed cartooning machine is designed based on the advanced foreign technology, strictly complying with the "GMP "standard. With high efficiency and high productivity, there are functions of leaflet folding and conveying, carton opening and forming, posterior pushing structure, and all the related technology can meet Europe/ USA standards; Simple design and posterior continuous pushing structure make the operation and maintenance be more convenient; Three equal rotating carton opening machines and the pre-forming device to ensure the complete carton opening and forming.
This model is an automatic high-speed continuous cartooning machine that combines pneumatic-photo-electro-mechanic in one. It is used in the automatic ALU-PVC blister inserting, cartooning of bottle/ soft tube/ soft AL/AL strips or pouch. It can also be linked to the production line.
Features:
3. Automatically displaying of trouble, speed, and finished products’ counting.
4. The machine will keep running without abnormal and will stop automatically when the incorrect position of product into carton, or no cartons, or out of leaflets.
5. No leaflet suction when no products, and no cartooning when no leaflet.
6. Automatic detection and rejection when lacking blister or leaflets.
7. Protecting automatically in case of overloading.
8. Stable performance, and it’s easy to operate.
|
Item
|
Technical parameters
|
|
|
Encasing speed
|
200 boxes/min
|
|
|
Box
|
Quality requirement
|
250-350g/ m2 [Base on carton size]
|
|
Dimension range, (L×W×H)
|
(70-200)mm×(35-80)mm×(14-50)mm
|
|
|
Leaflet
|
Quality requirement
|
60-70g/ m2
|
|
Unfolded leaflet specification, (L×W)
|
(80-250)mm×(90-170)mm
|
|
|
Folding
|
[1-4]Fold
|
|
|
Compressed air
|
Working pressure
|
?0.6mpa
|
|
Air consumption
|
150-200L/min
|
|
|
Power supply
|
380V 50HZ
|
|
|
Motor power
|
2.2kw
|
|
|
Machine dimension(L×W×H)
|
4300mm×1600mm×1550mm
|
|
|
Machine weight
|
2600kg
|
|
