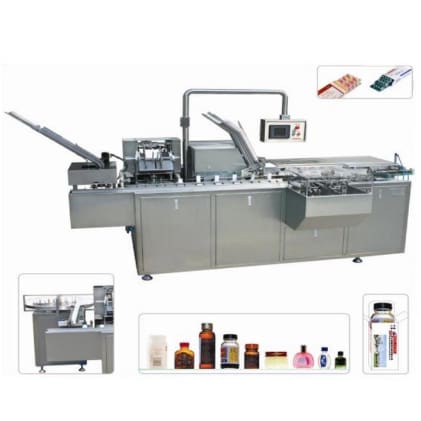

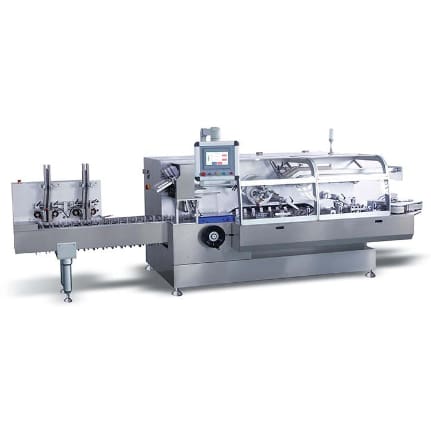

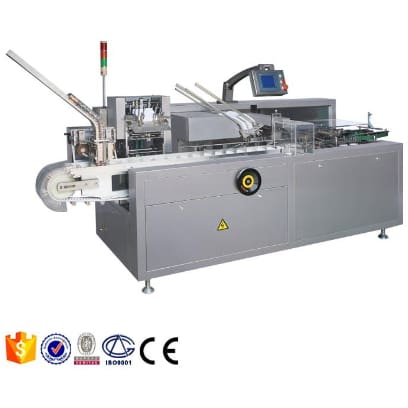

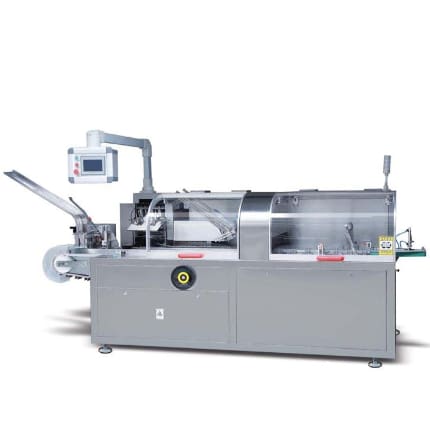

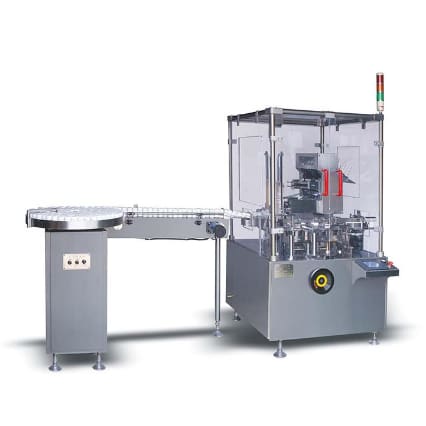

Intelligent Automatic Paper-plastic Cartoning Machine for Toothbrushes Daily Necessities

APM-USA

$40,000.00
SKU: P3899S

Brief introduction

This new model high-speed cartoning machine is designed based on the advanced foreign technology, strictly complying with the "GMP "standard. With high efficiency and high productivity, there are functions of leaflet folding and conveying, carton opening and forming, posterior pushing structure, and all the related technology can meet Europe/ USA standards; Simple design and posterior continuous pushing structure makes the operation and maintenance be more convenient; Three equal rotating carton opening machines and the pre-forming device to ensure the complete carton opening and forming.

This model is automatic high-speed continuous cartoning machine which combines pneumatic-photo-electro-mechanic in one. It is used in the automatic ALU-PVC blister inserting, cartonning of bottle/ soft tube/ soft AL/AL strips or pouch. It can also be linked in the production line.

Features:

1. International famous brand of electrical component, such as PLC, touch screen, and frequency inverters, etc.

2. Human-machine interface system.

3. Automatically displaying of trouble, speed and finished products’ counting.

4. Machine will keep running without abnormal, and will stop automatically when incorrect position of product into carton, or no cartons, or out of leaflets.

5. No leaflet suction when no products, and no cartoning when no leaflet.

6. Automatic detection and rejection when lacking of blister or leaflets.

7. Protecting automatically in case of overloading.

8. Stable performance, and it’s easy to operate.



Item
Technical parameters
Encasing speed
200 boxes/min
Box
Quality requirement
250-350g/ m2 [Base on carton size]
Dimension range, (L×W×H)
(70-200)mm×(35-80)mm×(14-50)mm

Leaflet
Quality requirement
60-70g/ m2
Unfolded leaflet specification, (L×W)
(80-250)mm×(90-170)mm
Folding
[1-4]Fold
Compressed air
Working pressure
?0.6mpa
Air consumption
150-200L/min
Power supply
380V 50HZ
Motor power
2.2kw
Machine dimension(L×W×H)
4300mm×1600mm×1550mm
Machine weight
2600kg
