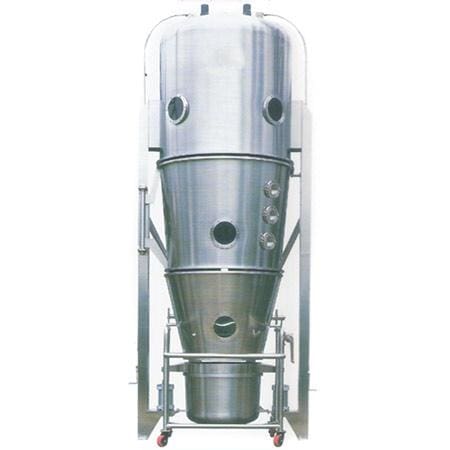

Pgl-b Series Spray Dryer Granulator
Main properties:
It is a new type of granulation machine combining technique of spray drying and fluid bed granulation. It utilizes negative pressure hot air flow to dry the liquid in spray chamber and the liquid on materials very fast, and also agglutinate them together into granules. The size of granules can be controlled by adjusting parameter.
Features:
Combines spraying, drying, mixing and granulation into one.
Makes granules with few assistant materials, small dosage amount, low sugar or sugar free.
Granules dissolved instantly, drinking preparation easily dissolve out and tablets disintegrated easily.
Machine works at negative pressure with smooth and cleaning inside surface without dead corner. It is convenient for cleaning to meet GMP requirements.
Application
Granules for drinking preparation, tablets and capsules.
Granules for time control releasing.
Granules for instant dissolved food and beverages.
Granules for chemicals.
Technical Parameter
|
item
|
model
unit
|
PGL-3B
|
PGL-5B
|
PGL-10B
|
PGL-20B
|
PGL-40B
|
PGL-80B
|
PGL-120B
|
|
|
capacity
|
kg/batch
|
2-5
|
3-15
|
10-30
|
30-80
|
50-160
|
100-250
|
150-450
|
|
|
Capacity for extracts
|
kg/batch
|
1-4
|
2-8
|
4-20
|
8-40
|
20-60
|
40-120
|
100-140
|
|
|
Liquid gravity
|
Kg/L
|
?1.3
|
|||||||
|
Volume of-fluid bed
|
kg
|
26
|
50
|
120
|
300
|
500
|
750
|
1100
|
|
|
Power of main fan
|
kw
|
3/4
|
4/5.5
|
5.5/7.5
|
11/15
|
18.5/22
|
30/37
|
45/55
|
|
|
Power of assistant fan
|
Kw
|
0.55
|
0.55
|
1.1
|
1.1
|
1.5
|
1.5
|
2.2
|
|
|
steam
|
consumption
|
Kg/h
|
40
|
70
|
99
|
210
|
300
|
420
|
530
|
|
Pressure
|
Mpa
|
0.4-0.6
|
|||||||
|
Power of electric heating
|
kw
|
9
|
15
|
21
|
25.5
|
51.5
|
60
|
75
|
|
|
Compressed
Air
|
consumption
|
M3/min
|
0.5
|
0.8
|
0.8
|
0.9
|
1.1
|
1.3
|
1.8
|
|
pressure
|
mpa
|
0.4-0.6
|
|||||||
|
Working temp.
|
?
|
Adjustable from indoor temperature to 120?
|
|||||||
|
moisture
|
%
|
?2
|
|||||||
|
Collection of materials
|
%
|
?95
|
|||||||
|
noise
|
db
|
?70 suction fan is separately treated
|
|||||||
|
Dimension
of main
machine
|
?
|
mm
|
400
|
550
|
700
|
1000
|
1200
|
1400
|
1800
|
|
H1
|
mm
|
2190
|
2650
|
3050
|
3530
|
4020
|
4500
|
5430
|
|
|
H2
|
mm
|
1740
|
2200
|
2520
|
2950
|
3380
|
3860
|
4800
|
|
|
B1
|
mm
|
300
|
500
|
550
|
700
|
800
|
900
|
1000
|
|
|
B2
|
mm
|
720
|
980
|
1130
|
1430
|
1630
|
1830
|
2030
|
|
