Automatic Powder Filling Capping Sealing Machine in Factory Price
Product Description

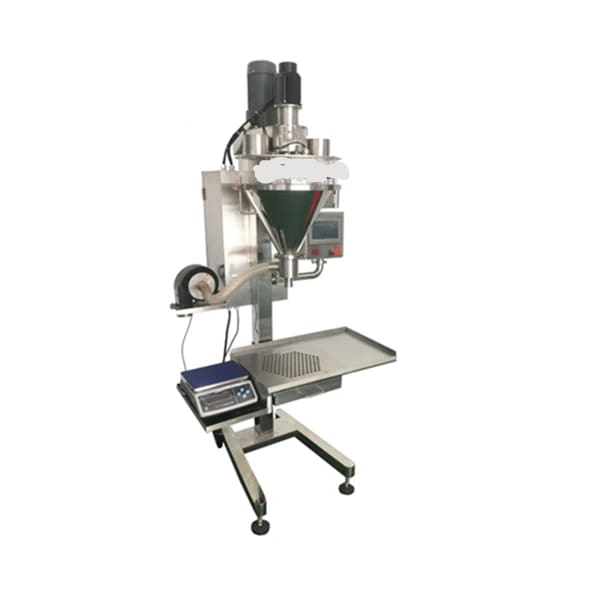

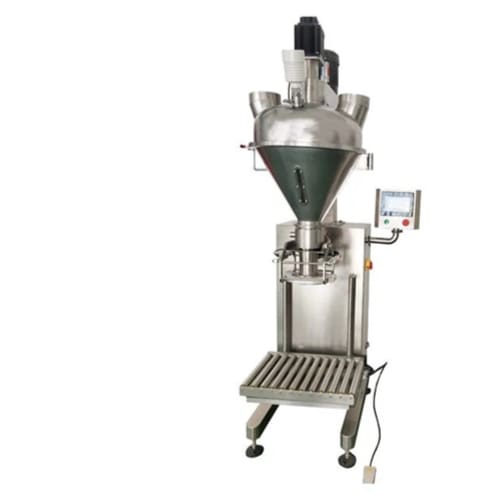

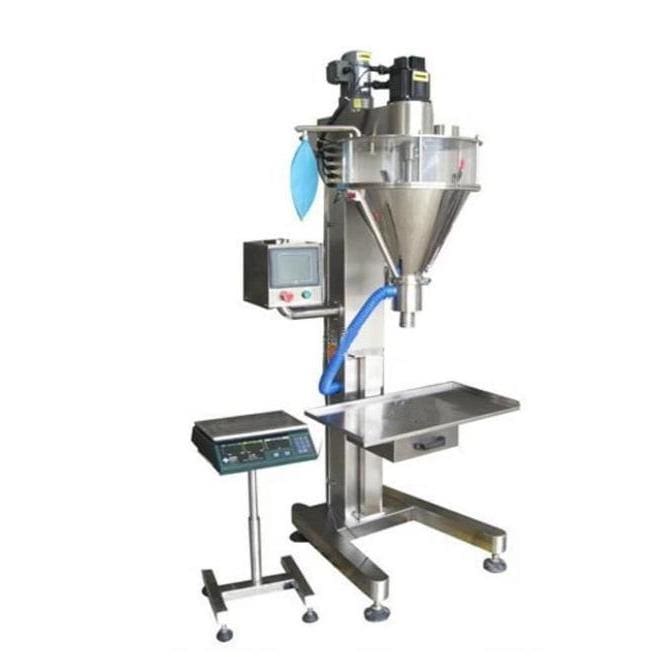

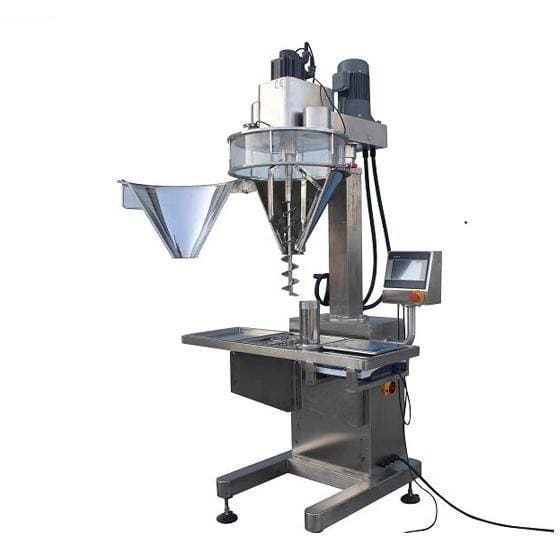

Semi-automatic dry chemical powder filling and sealing machine
Welcome to selected DJBR Semi-automatic Auger Filling and Packaging Machine which produce from APM Pharmaceutical Equipment Development Ltd.
The machine is mainly by the combination of filling types of equipment, transparent and open style's hopper, column and electronic control system. ( The sealing may change by customers )The whole body is made of stainless steel; The Chinese/English is displayed on the touch screen. HMI using PLC and touch screen; It designed in terms of National "QS" and "GMP" standards;
The servo motor drive controls the filling system, The geared motor made from Taiwan controls the mixing system to keep the stable performance and high packaging accuracy.
The combinations of whole sealing machine, stainless steel's body, and PMMA material box made the clean easy;
The height-adjustable working table; Ten kinds of packaging parameters can be store; For the dusty material's packaging, we can add a dust collector for cleaning; The machine is suitable for many kinds of size and powdery material's packaging through changing the auger attachment.
Technological Parameters
|
Model
|
DJBR
|
|
Metering Mode
|
Auger filling, Electronic-sensing weighing feedback
|
|
Package Weight
|
100-3000g changeable( by changing auger attachment)
|
|
Package Accuracy
|
±0.3-1%(according to the material )
|
|
Packaging Speed
|
10-45bags/min
|
|
Power Supply
|
380V 50Hz/60Hz (Customizable 220V's motor)
|
|
Hopper Volume
|
50L
|
|
Total Power
|
1.3Kw
|
|
Overall Dimensions
|
1200×800×2150mm
|
|
Operational Style
|
PLC control system, 5.7-inch colorful touch screen
|
All data are used for reference only. According to the condition of material, there will be no further notice if any modification.
