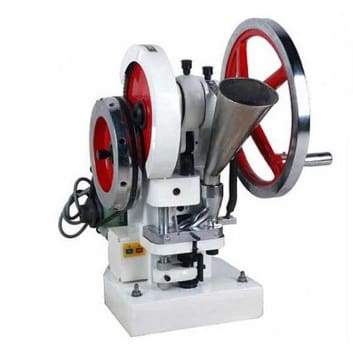

9mm Round Shape Certificate Tdp-5 Die Custom Manual Pill Press
Automatic Single Punch Tablet Press Machine?

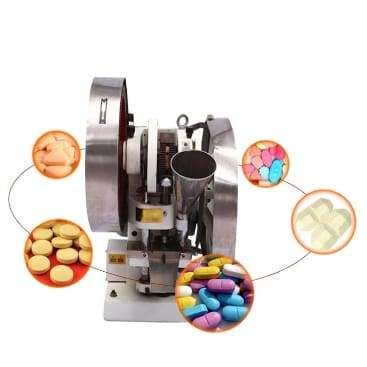

The single stamping machine is suitable for the suppression of Chinese medicine tablets, western medicine tablets, chewing tablets, calcium tablets, mouth buccaneer tablets, spirulina slices, milk slices, candy slices, effervescent tablets, camphor pill (sanitary ball), aromatic slices, flavor blocks, disinfectant tablets, catalyst, chemical fertilizer tablets, pesticide tablets, button batteries, electric components, metallurgical powder ceramics particles and so on. It's a small desktop electric (manual) continuous press machine.
The machine is equipped with a punch die, the material's filling depth and the thickness of the press can be adjusted. Various shapes of molds can be provided according to customer requirements. The single stamping machine can be used in pharmaceutical factories, chemical plants, hospitals, scientific research units, laboratory trial production, and small batch production. This machine has excellent performance, strong adaptability, easy to use, easy to maintain, small volume and lightweight, and can also be used for hand-held tablets when there is no electricity. This machine only has one charge die, the filling depth and the thickness of the press can be adjusted. It can adapt to the requirements of the pharmaceutical industry to suppress various Chinese and Western medicine and other industries to suppress a variety of similar products. It is well received by the broad users of various industries.
Model
|
1.5T
|
5T
|
6T
|
Max.Pressure
|
15
|
50
|
60
|
Max.The diameter of the Tablet mm
|
12
|
16
|
25
|
Max.Depth of Tablet in mm
|
11
|
12
|
16
|
Max.The thickness of Tablet mm
|
6
|
6
|
10
|
Production Capacity pc/h
|
6000
|
6000
|
6000
|
Motor w
|
250w 1400r/min
|
750w 1400r/min
|
1.1kw 1400r/min
|
Overall Size
|
580*450*625
|
580*500*700
|
650*600*700
|
Net Weight in kg
|
70kgs
|
125kgs
|
160kgs
|
There will no further notification if the appearance or parameters of our products are modified.
