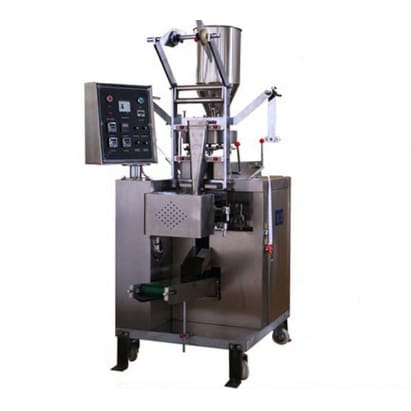

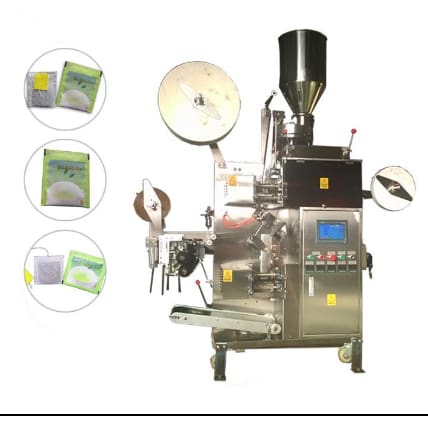

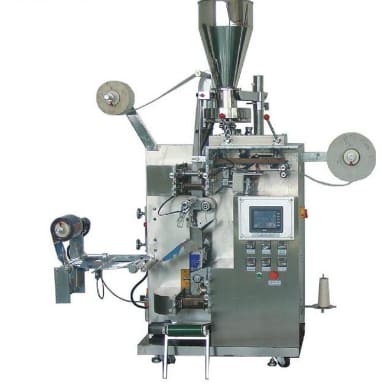

Full Automatic Tea Bag Packing Machine
Product specification
DXDC8IV model tea bag packing machine is new developed, with thermal sealing and multi-functions, it's the necessary for bag-type drinking's automatic packing.
With the innovated external packing method, the bag shape is beautiful. The transmission system is controlled by the variable frequency, the intermediate plate-type thermal sealing is adopted for the outside bag, and the cartoning is automatic.
The machine can be used for the thermal sealing for many kinds of films, including paper/plastic, plastic/plastic, plastic/Alu/plastic/ and paper/Alu/ plastic, etc.
Application: Heath care tea, antihypertensive tea, liver protecting tea, beauty tea and slimming tea
|
Packing speed
|
105±5bags/min
|
|
Width of inner bag's filtering paper
|
125mm
|
|
Packing volume
|
6cm3
|
|
Inner bag size (L×W)
|
62.5 mm×50 mm
|
|
Outside bag size (L×W)
|
70 mm×80 mm
|
|
Label size (L×W)
|
24mm×26mm(Thermal-sealing label)
|
|
24 mm×28 mm (Thermal-sealing label for tear open)
|
|
|
Length of label wire
|
210mm
|
|
Material of outside bag
|
Many kinds of compounding material can be used for the outside, including BOPP20/ VM-PET12/ PE40, paper/ PE, matting OPP20/ BOPP35, etc
|
|
Power supply
|
AC 220V/380V
|
|
Power
|
2.5KW
|
|
Dimension (L×W×H)
|
1840mm×1290mm×1890mm(Standard configuration)
|
There will be no further notification if the appearance or parameters of our products are modified. Thanks.
