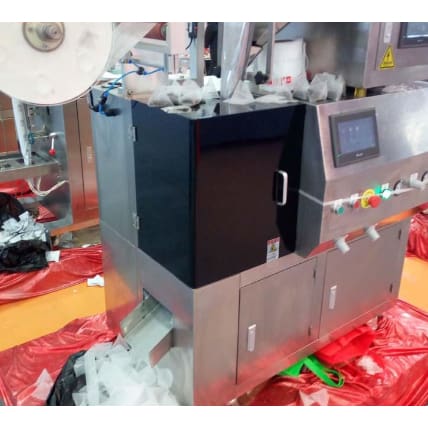

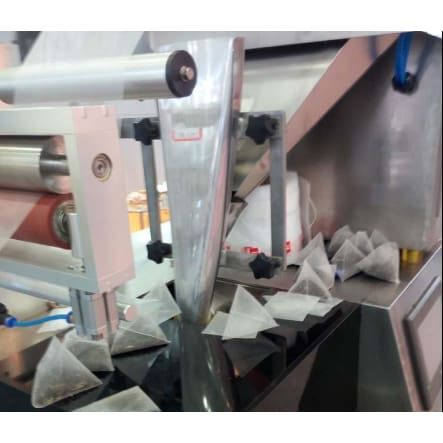

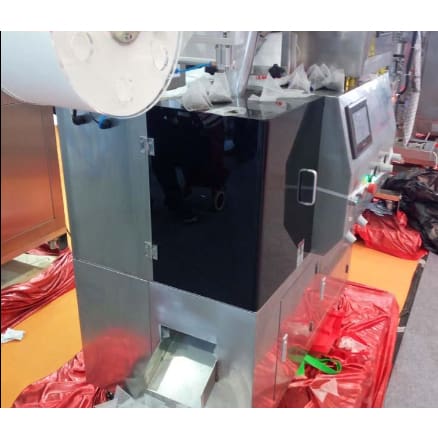

High Quality Low Price Automatic Nylon Pyramidal Tea Bag Packing Machine
Product Description
The machine is suitable for seeds, pharmacy, health care products, tea and other industry. The machine can pack material into inside bag, then put inside bag into outer bag, so as to finish packing two bags at the time.
The inside bag is three-side sealing, and can sealing filter cotton paper and other heatable-sealing material: The outer bag is three-side sealing. With two-way free landscape correcting equipment, and portrait brainpower photoelectric positioning system, free change of link tag, positioning tag.It can automatically finish bag making, measuring, filling, sealing, printing, cutting, counting, and output end products.
Features:
The mold use Gas pressure to avoid mis operation of the damage caused by mold, Done to reduce the consumption. Control box using the PLC programmable control true color touch screen, power control components are imported to control the electronic control system, stability, performance, well, soft capsule machine in order to ensure the targets.
1 PLC control used.( Compressive, Long life)
2. With fault diagnosis function.
3. Simulation of machine images, vivid clear at a glance.
4. Simple intuitive operation.
|
Model
|
SSD-30DL
|
|
Bag size:inside bag
|
L: 50-70mm W: 40-80mm
|
|
Outer bag
|
L:70-120mm W: 60-90mm
|
|
Size of the tag
|
L: 20-40mm W: 40-55mm
|
|
Line length
|
155mm
|
|
Speed
|
35-60b/m
|
|
Power
|
220v, 50HZ, 1.6KW (customized)
|
|
Weight
|
350kg
|
|
Dimension
|
900*950*1800mm
|
|
Control system
|
about 40W
|
|
The main electric machine
|
220, 370W, single phase, 1400rpm
|
