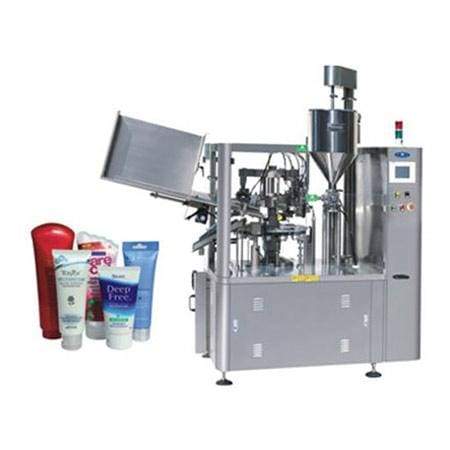

Rgf-100yc Tube Filling & Sealing Machine

Main features ?

Applicable to: plastic composite tubes and aluminum composite tubes

Multi-color filling / Special tube filling / Special-shaped sealing

Technical parameters:

Operation speed: 80/min(max)

Filling volume: 5-400ml

Filling precision: ?±0.5%

Suitable tube length: 50-240mm

Suitable tube diameter: 10-60mm

Standard configuration: obliquely hanging type automatic lining-up tube feeding storehouse

Optional: externally allocated refrigerator

Optional: blowing and sucking type tube cleaning device

Optional: jacket and barrel heat preservation device

Optional: blending device inside the barrel

Optional: large-scale tube feeding device (externally allocated floor type synchronous tube feeding machine)

Optional: special-shaped sealing devices (wave type sealing device, arc sealing device and T-shaped punching hole sealing device etc.)

Optional: multi-color filling system

Optional: special filling device with volume lower than 3ml/tube

Optional: nitreding device before and after filling

Optional: automatically controlled material feeding device (pump)

Optional: finished tube conveyor
