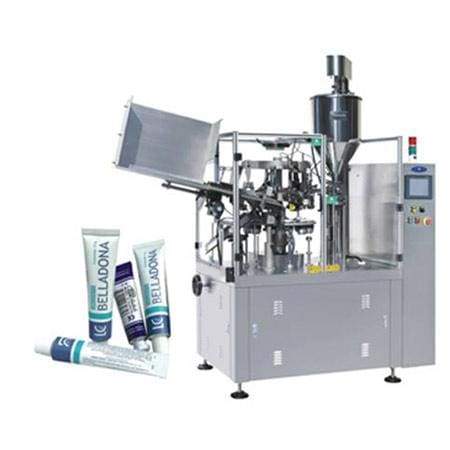

Rgf-80z-b Tube Filling & Sealing Machine

Main features

Applicable to: metal tubes

Technical parameters:

Operation speed: 80/min(max)

Filling volume: 1-300ml

Filling precision: ?±0.5%

Suitable tube length: 50-200mm

Suitable tube diameter: 10-50mm

Standard configuration: saddle folding and sealing device, which can realize three-side and four-side folding through adjustment

Standard configuration: obliquely hanging type automatic lining-up tube feeding storehouse

Optional: blowing and sucking type tube cleaning device

Optional: jacket and barrel heat preservation device

Optional: blending device inside the barrel

Optional: large-scale tube feeding device (externally allocated floor type synchronous tube feeding machine)

Optional: special filling device with volume lower than 3ml/tube

Optional: nitriding device before and after filling

Optional: automatically controlled material feeding device (pump)

Optional: finished tube conveyor
