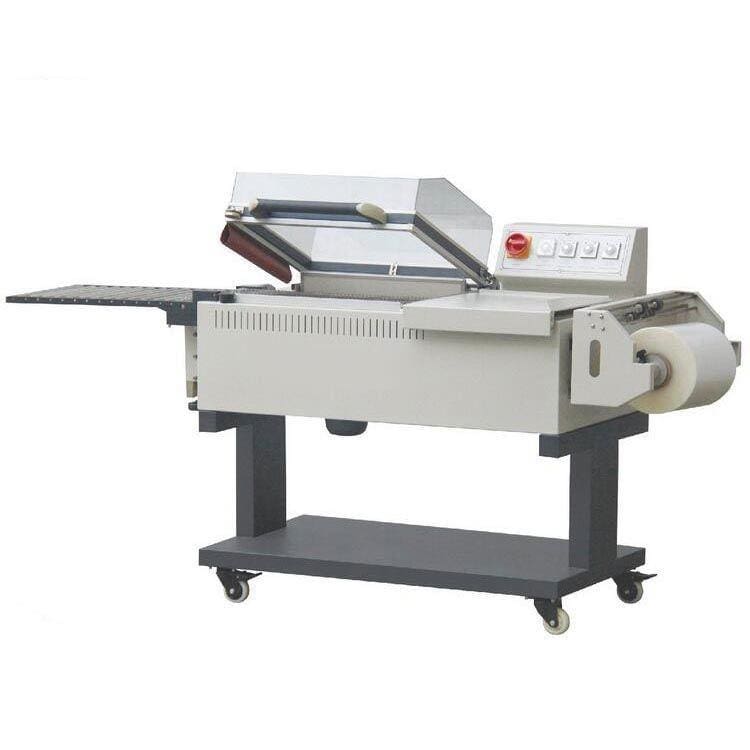

{apm} Automatic Heat Shrink Packaging Machinery Price
The machine is suitable for packing long items (such as wood, aluminum, etc.).
Adopt the most advanced Imported PLC programmable controller, with safety protection and alarm device, ensure the machine high-speed stability, a variety of settings can be easily completed on the touch screen operation.
Use side sealing design, no limited of product packaging length, the sealing line height can be adjusted according to the packing product height. Equipment with imported detection photoelectric, horizontal and vertical detection in one group, easy to switch selection.
Feature:
1. BTA-450 is an economical fully-auto operation L sealer by our company's independent research and development, which is widely used in mass production assembly line with auto-feeding, conveying, sealing, shrinking in one time. It is high working efficiency and suits for the products of different height and width;
2. The horizontal blade of sealing part adopts vertical driving, while the vertical cutter uses international advanced thermostatic side cutter; The sealing line is straight and strong and we can guarantee seal line in the middle of the product to achieve perfect sealing effect;
3. When it packs different sizes, the adjustment is very simple by rotating the hand wheel to increase the reliability;

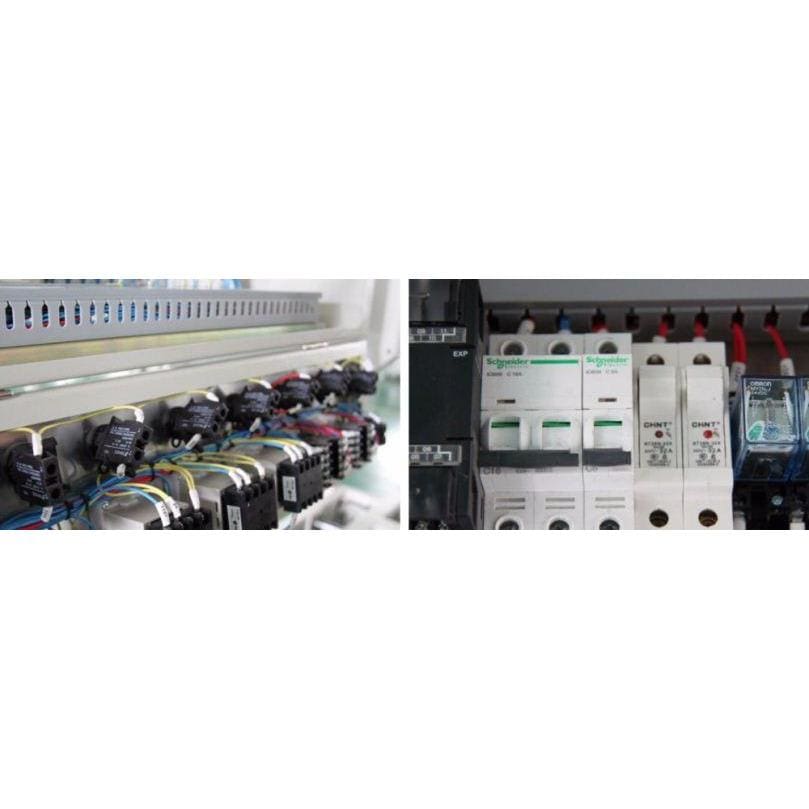

4. The machine adopts the most advanced PLC programmable controller, with safety protection and alarm devices, while the sealing system can have a continuous sealing order without replacement; Maintenance is very simple;
5. Feeding length controls through a combination of electric eye detection and time relay to control precise film length that makes it easier to control the contraction effect;
6. Two groups of horizontal and vertical electric eyes are easy to switch for thin or small packages which can easily complete sealing packaging operations;
7. Automatic rolling waste material: Using a separate motor to control which is not too loose or too tight to crack and is easy to remove the waste;
8. Automatic blowing function;
9. Feeding table and collecting conveyor can be selected as your demands.
Model
|
BTA-450
|
BM-500
|
Max Packing Size
|
(L+H)?500mm (W+H)?430mm (H)?150mm
|
(L)700 *(W)400mm *(H)200mm
|
Max Sealing Size
|
(L)550* (W)450mm
|
(L)1000 * (W)450 * (H)250mm
|
Packing Speed
|
20 - 35 packs/min
|
0 - 15 m/min
|
Electric Supply & Power
|
220V/50Hz 1.3KW
|
380V/50Hz 12KW
|
Air Pressure
|
5.5kg/cm3
|
/
|
Weight
|
500kg
|
260kg
|
Overall Dimensions
|
(L)1800 * (W)800 * (H)1600mm
|
(L)1300 * (W)700 * (H)1400mm
|
There will no further notification if the appearance or parameters of our products are modified. Thanks.
